Pendulum Support, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

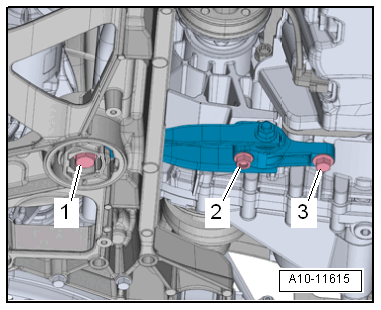

-- Remove the bolts -1, 2 and 3- and remove the pendulum support.

Fig 1: Engine Support Component Location
GWWA10-11615Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
