Rain/Light Recognition Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Release and disconnect the connector -3-.

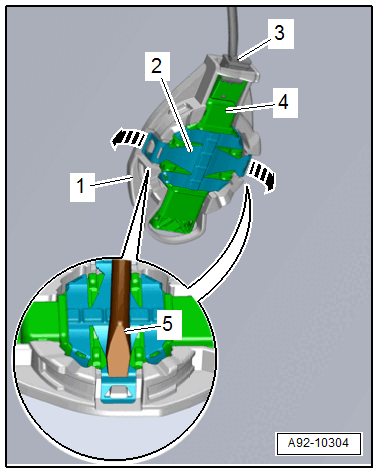

Fig 1: Locating Screwdriver

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert a narrow screwdriver -5- into the opening as shown and release the retainers on the spring -2- -arrows-.

-- Wait one minute so that the silicone pad can be removed without leaving any residue.

-- Loosen the Rain/Light Recognition Sensor -G397- -4- by moving it back and forth and remove it from the mount -1-.

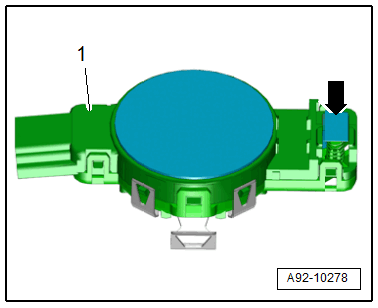

Fig 2: Locating Rain/Light Recognition Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

There is a risk of damaging the humidity sensor.

The humidity sensor -arrow- on the Rain/Light Recognition Sensor -G397- -1- is extremely sensitive and must not be damaged.
If the humidity sensor -arrow- is replaced, the Rain/Light Recognition Sensor -G397- -1- must be replaced.
