Windshield Washer Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

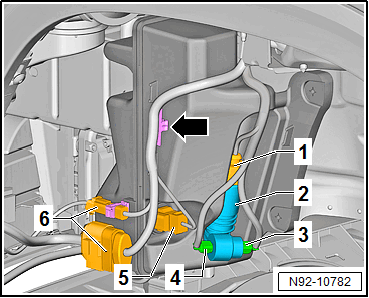

-- Release and disconnect the connector -1-.
-- Release and remove the washer fluid hose -3- and -4- from the Windshield and Rear Window Washer Pump -V59- -2-.
-- Remove the Windshield and Rear Window Washer Pump -V59- -2- from the washer fluid reservoir.
