Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Place a drip tray under the washer fluid reservoir.

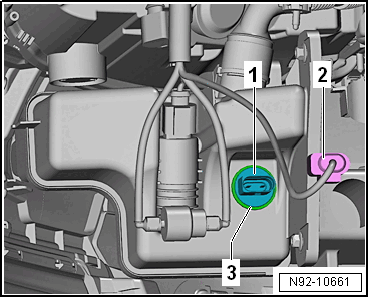

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Windshield Washer Fluid Level Sensor -G33- -1- from the washer fluid reservoir.

-- If necessary, remove the seal -3- from the washer fluid reservoir.
