Washer Nozzles, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the hood.

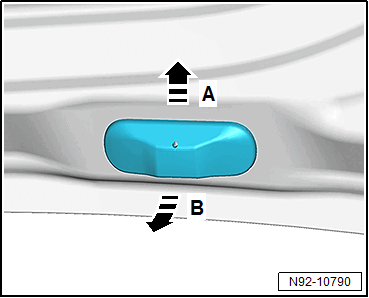

-- Push the washer nozzle upward -arrow A- and tilt it out from under the flap -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

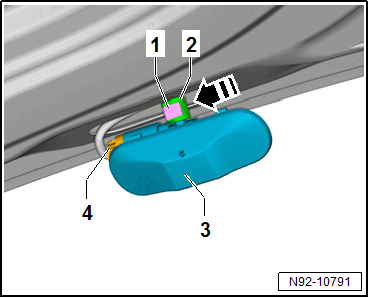

-- Release the hose clip -1- in the -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hose connection -2- from the washer nozzle -3-.

-- Release and disconnect the connector -4-.

-- Remove the washer nozzle -3-.
