Overview - Windshield Washer System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Depending on the equipment the washer fluid reservoir varies in shape and size from the illustration.

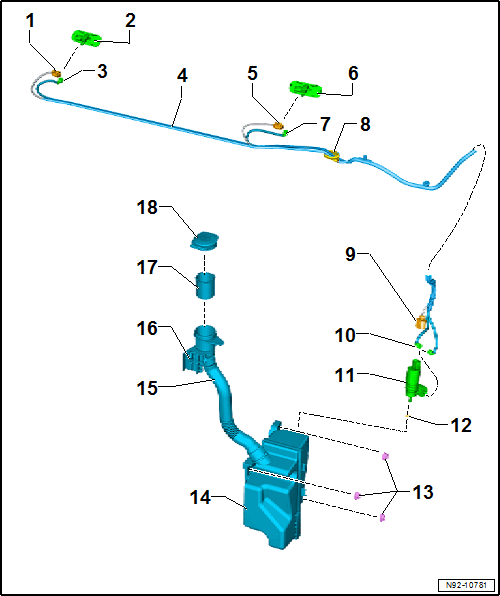

- Connector
- For the Right Washer Nozzle Heater -Z21-
- Right Washer Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Washer Fluid Hose Connection
- Washer Fluid Hose
- For the windshield washer system
- Black color coding
- Connector
- For the Left Washer Nozzle Heater -Z20-
- Left Washer Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Washer Fluid Hose Connection
- Grommet
- For the washer fluid hose in the front lid
- Connector
- For the Windshield And Rear Window Washer Pump -V59-
- Washer Fluid Hose Connection
- Windshield and Rear Window Washer Pump -V59-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Nuts
- Quantity: 3
- 8 Nm
- Washer Fluid Reservoir
- With Windshield Washer Fluid Level Sensor -G33-.
- Washer Fluid Reservoir, Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Windshield Washer Fluid Level Sensor -G33-, Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Filler Tube
- For the washer fluid reservoir
- Filler Neck
- For the washer fluid reservoir
- Screen
- Cap
- For the filler neck
