Windshield Wiper Arm, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch the ignition on.

-- Activate "rear wiping" and let the wiper arm run to end position.

-- Switch the ignition off.

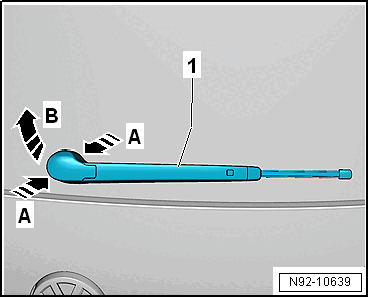

-- Push the rear window wiper cap -1- together in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold up the cap in the -direction of the arrow B-.

-- Loosen the nut -3- several turns.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

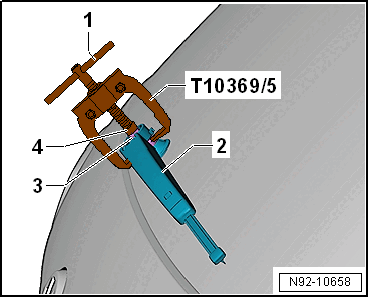

-- Position the Puller - Wiper Arm Kit - Puller 5:T10369/5 on the wiper arm -2-.

-- Position the thrust piece -4- on the wiper arm shaft.

-- Turn the bolt -1- clockwise until the windshield wiper arm is removed from the wiper arm shaft.

-- Completely remove the nut -3-.

-- Remove the windshield wiper arm -2-.
