Overview - Rear Window Wiper System

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

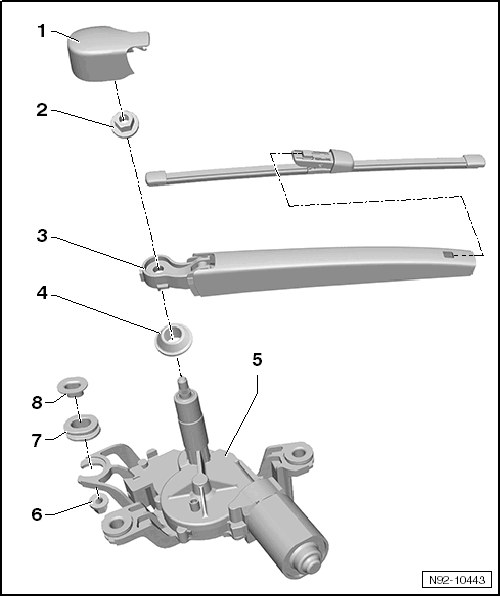

Fig 1: Exploded View Of Rear Window Wiper System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cap
Nut
- 12 Nm
Windshield Wiper Arm with Joint-Free Windshield Wiper
- Removing and installing. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
- Park Position, Adjusting. Refer to WIPER ARM, ADJUSTING .
- Joint-Free Windshield Wiper, Removing and Installing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
Seal
- Integrated in the rear window
- Replace if damaged. Refer to Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING .
- Removing and installing. Refer to Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING .
Rear Window Wiper Motor -V12-
- Removing and installing. Refer to Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING .
Nuts
- Quantity: 3
- 8 Nm
Rubber Rings
- Quantity: 3
Spacers
- Quantity: 3
