Washer Nozzle, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the high-mounted brake lamp. Refer to HIGH-MOUNTED BRAKE LAMP, REMOVING AND INSTALLING .

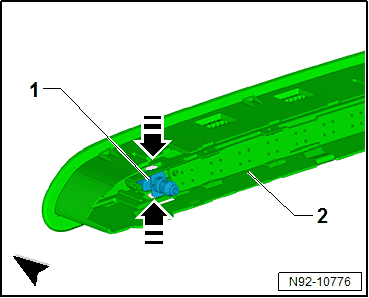

-- Release both catches -arrows-.

GWWN92-10776Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the washer nozzle -1- toward the rear from the high-mounted brake lamp.
