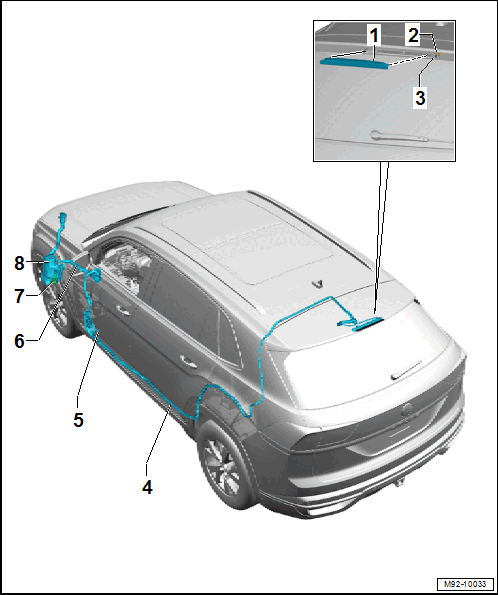

Overview - Rear Window Washer System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- High-Mounted Brake Lamp
- Removing and installing. Refer to HIGH-MOUNTED BRAKE LAMP, REMOVING AND INSTALLING .
- Washer Fluid Hose Connection
- for the rear window washer system
- Washer Nozzle
- Removing and installing. Refer to WASHER NOZZLE, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLE, ADJUSTING .
- Washer Fluid Hose
- From the washer nozzle of the rear window washer system to the coupling rod in the left front footwell
- Washer Fluid Hose Coupling Rod
- In the left front footwell near the Coupling Point on Left A-Pillar, Bottom -TALU-
- Washer Fluid Hose
- From the coupling rod in the left front footwell to the Windshield and Rear Window Washer Pump -V59- on the washer fluid reservoir
- Windshield and Rear Window Washer Pump -V59-
- Removing and installing. Refer to REAR WINDOW WASHER PUMP, REMOVING AND INSTALLING .
- With grommet; replace if damaged.
- Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
