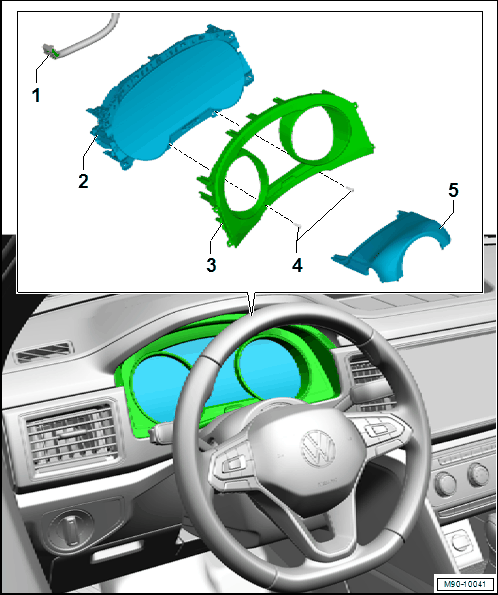

Overview - Instrument Cluster, Instrument Cluster With Analog Instruments
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING, INSTRUMENT CLUSTER WITH ANALOG INSTRUMENTS .
- Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Bolts
- Quantity: 2
- 1.5 Nm
- Upper Steering Column Trim Panel
- Removing and installing. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
