Overview - Instrument Cluster, Fully Digital Instrument Cluster
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

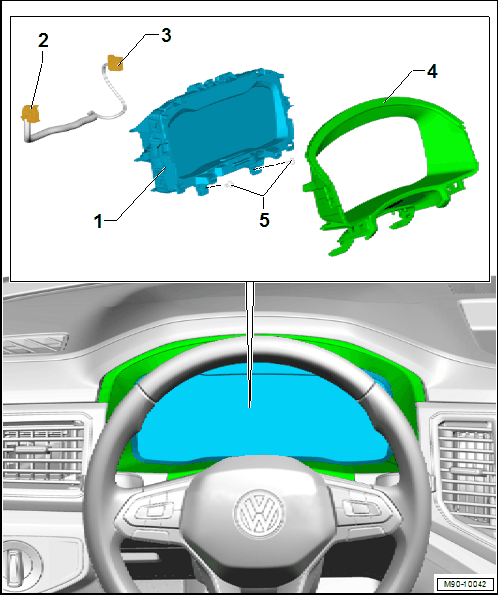

- Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING, ALL-DIGITAL INSTRUMENT CLUSTER .
- Connector
- For the instrument cluster
- MOST Bus Connector
- For the instrument cluster
- Instrument Cluster Trim Molding
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 1.5 Nm
