Overview - Horn, Version 3

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

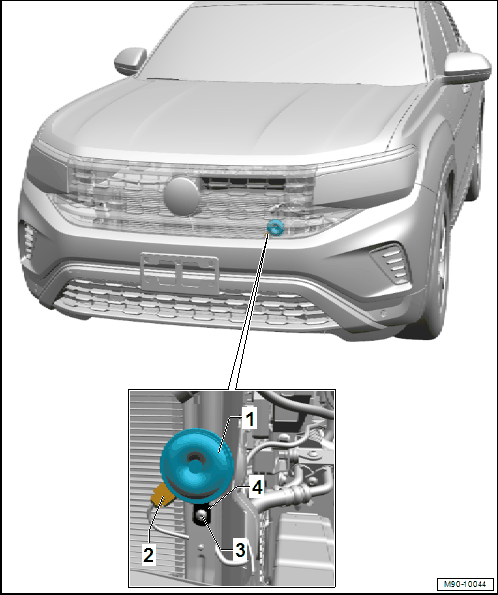

GWWM90-10044Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Left Horn -H33-
  2. Connector
    • Quantity: 1
  3. Bolt
    • Quantity: 1
    • Tightening specification: 8 Nm
  4. Bracket
