Overview - Horn, Version 2
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

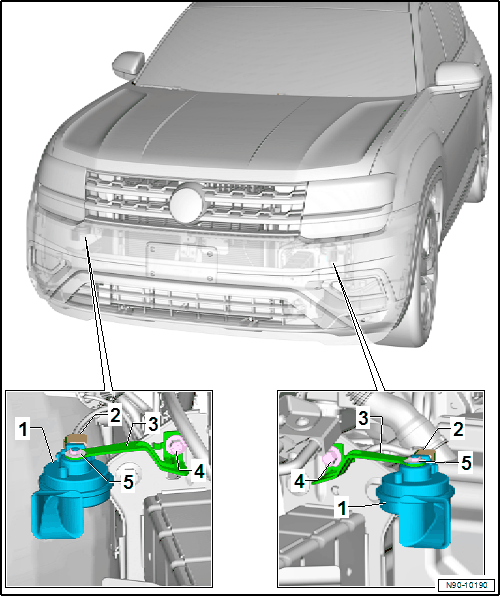

- Horn
- High Tone Horn -H2- is installed on the left
- Low Tone Horn -H7- in installed on the right
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING, VERSION 2 .
- Connector
- Bracket
- For the High Tone Horn -H2- /Low Tone Horn -H7-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING, VERSION 2 .
- Bolt
- 18 Nm
- Nut
- 11 Nm
