Windshield Wiper/Washer System, Checking Washer Nozzle Adjustment And Adjusting, If Necessary

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

In cases where contamination in spray jet results in an uneven spray pattern, remove the spray jet and rinse it with water in the opposite direction of the spray flow. Cleaning with compressed air in the opposite direction of the spraying direction is permitted afterward. Do not use any objects to clean the washer nozzles.

Windshield Washer Nozzle Adjustment

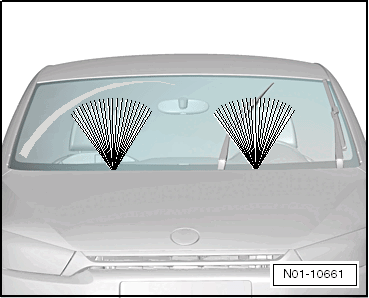

Fig 1: Identifying Windshield Spray Fields For Comparison

Courtesy of AUDI OF AMERICA, LLC

The washer nozzles are preset. Small height adjustments can be made.

-- If both spray fields are not at same height, adjust spray direction upward or downward as follows:

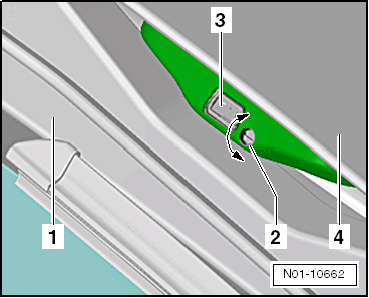

Fig 2: Identifying Adjustment Of Spray Nozzle -3- With Adjuster -2-

Courtesy of AUDI OF AMERICA, LLC

1 -

Cowl Panel Plate in Front of Windshield

2 -

Adjuster TORX size 8

3 -

Spray Nozzle

4 -

Hood

-- Turn the adjuster -2- using a Torx screwdriver to adjust the washer nozzle -3-.

"Clockwise" lower adjustment.
"Counter-clockwise" higher adjustment.

Rear Window Washer Nozzle Adjustment

NOTE:

The washer nozzle of the Atlas cannot be adjusted.
