Wheel Bolts, Tightening To Specification
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Wheel Lock Set:T10313
- Torque Wrench
NOTE:
A special adapter is required to loosen/tighten anti-theft wheel bolts. It is included in the vehicle tool kit.
Do not use an impact wrench to loosen the anti-theft wheel bolts (lockable wheel bolts).
If the adapter to loosen/tighten the anti-theft wheel bolts is not present in the vehicle, use the corresponding master wheel bolt key set.

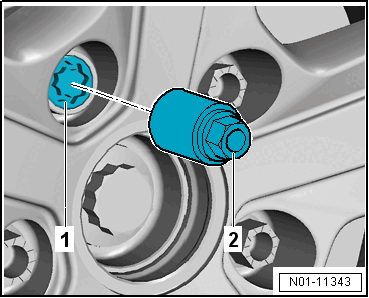

-- Slide the adapter -2- all the way into the anti-theft wheel bolt -1-.
-- Insert the wrench over the adapter -2-.
-- Tighten the wheel bolts in a diagonal sequence to the tightening specification.
| Tightening Specification | Nm |
|---|---|
| Wheel Bolts | 120 |
