Spark Plugs, Replacing, 3.6L FSI Engine: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

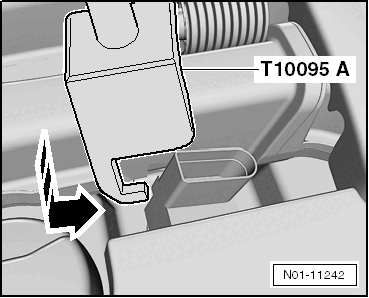

Fig 1: Pushing Puller T10095A In -Direction Of Arrow- Starting From Straight Connector Side To Remove Ignition Coil
-- Carefully loosen the connector safety catch using the Elbow Assembly Tool:T10118 and remove the connector.
-- Place the Puller - Ignition Coil:T10095 A on the ignition coil with power output stage and pull out the ignition coil with power output stage.
-- Remove the spark plugs using the Spark Plug Removal Tool:3122 B .
