Rear Water Drain Valves, Checking For Blockage And Cleaning If Necessary

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

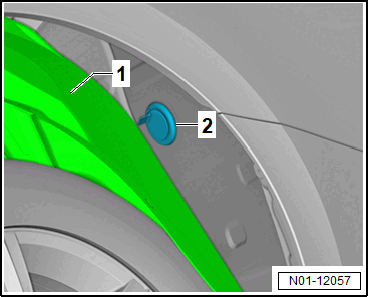

GWWN01-12057Courtesy of AUDI OF AMERICA, LLC

-- Loosen the left rear wheel housing trim panel -1- far enough so that the water drain valve -2- is accessible.

-- Open the rear water drain valve and check for blockage; if necessary, remove the blockage in the water drain valve.

-- Repeat the procedure on the other side of the vehicle.
