Guide Rails, Cleaning And Greasing, Cleaning Wind Deflector

-- Completely open the roof system and first remove any loose dirt residue in the guide rails using the Wet and Dry Vacuum Cleaner.

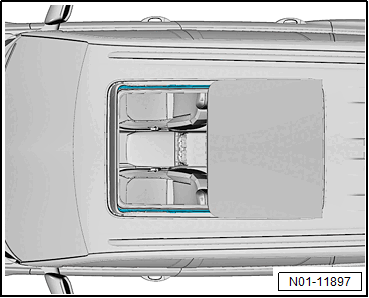

Fig 1: Guide Rails

Courtesy of AUDI OF AMERICA, LLC

-- Remove the grease and dirt residue on the guide rails with a lint-free cloth.

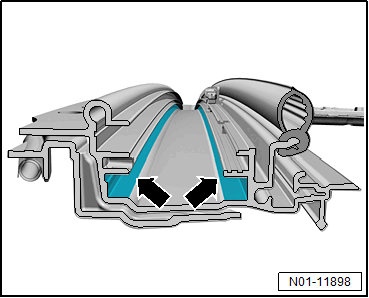

Fig 2: Lubricating Locations

Courtesy of AUDI OF AMERICA, LLC

-- Lubricate the inside and outside of the entire guide rails -arrows-.

-- Repeat the process for the opening on the opposite side of the vehicle.

-- After lubricating the roof system, completely open and close it one time and then remove the excess grease.

Wind Deflector, Cleaning

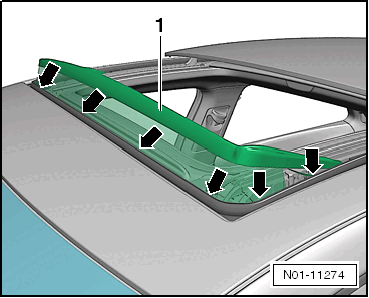

Fig 3: Identifying Wind Deflector

Courtesy of AUDI OF AMERICA, LLC

-- Clean the wind deflector net and frame -1- using a sponge and soapy water.

-- Remove any loose residual dirt from the wind deflector shaft -arrows- using an industrial vacuum cleaner.
