CV Boots, Visually Inspecting
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

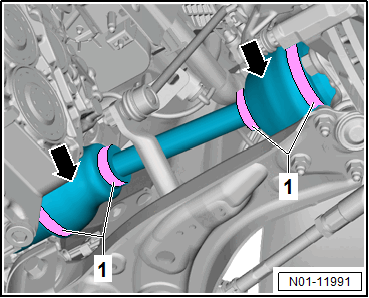

Front Axle
 Courtesy of AUDI OF AMERICA, LLC
|
-- Check the outer and inner CV boots -arrows- for leaks and damage.
-- Make sure that the clamps -1- are present on the CV boots.

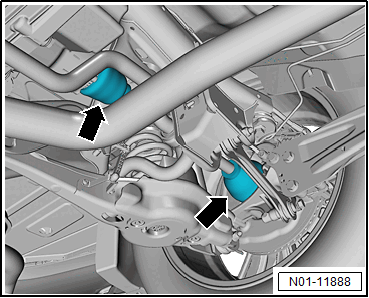

Rear Axle
 Courtesy of AUDI OF AMERICA, LLC
|
-- Check the outer and inner CV boots -arrows- for leaks and damage.
