Vehicle Diagnostic Tester, Connecting
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Vehicle Diagnostic Tester
NOTE:
Make sure the selected Vehicle Diagnostic Tester is only used with the accompanying diagnostic cable.
Always secure the testing and measuring equipment on the rear seat when performing a road test.
While driving only the passenger may operate this equipment.
Procedure

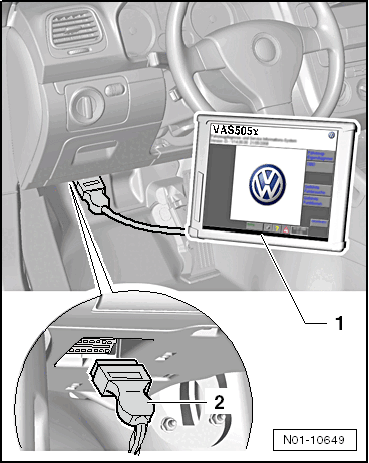

-- Connect the diagnostic cable connector -2- to the diagnostic connection.
-- Switch on the Vehicle Diagnostic Tester -1-.
-- Switch the ignition on.
Follow the instructions on the screen to start the desired functions.
