Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the footrest. Refer to FOOTREST, REMOVING AND INSTALLING .

-- Unclip the diagnostic connection from the bracket.

-- Disconnect the connectors -1, 2 and 3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To disconnect the connector, press the catch -1-.

Fig 1: Pressing Catch -1-, Turn Retaining Bracket In - Direction Of Arrow For Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot the retaining bracket -arrow- and remove the connector.

CAUTION:

To pivot the retaining bracket at the center connector, the red locking mechanism must also be pulled all the way out of the retaining bracket.

-- Remove the connector -2- downward from the guide.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

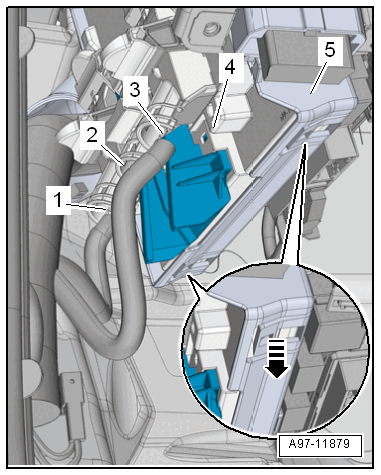

-- Release the springs -arrow-, pivot the vehicle electrical system control module -4- out of the bracket -5- and remove it downward.
