Rear Lid Control Module -J605-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Lower the rear headliner. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

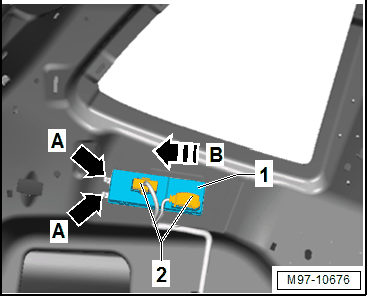

-- Release and disconnect the connectors -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainers -A arrows- from the Rear Lid Control Module -J605- -1-.

-- At the same time, push the Rear Lid Control Module -J605- -1- in the -direction of the arrow B- until it stops.

-- Remove the Rear Lid Control Module -J605- -1- forward from the body.
