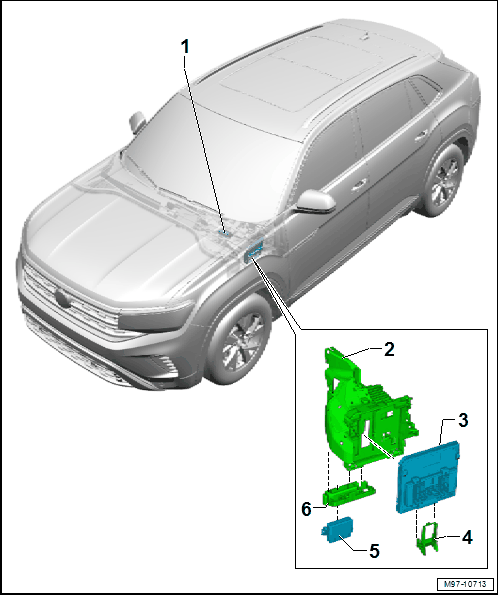

Component Location Overview - Control Modules
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Data Bus on Board Diagnostic Interface -J533-
- Removing and installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
- Bracket
- For the Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Guide
- For the center connector
- Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Parking Aid Control Module -J446- Overview. Refer to Parking Aid / Parallel Parking Assist / Autonomous Parking .
- Parallel Parking Assistance Control Module -J791- Overview. Refer to Parking Aid / Parallel Parking Assist / Autonomous Parking .
- Bracket
- For Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Removing and installing. Refer to PARKING AID / PARALLEL PARKING ASSISTANCE CONTROL MODULE, REMOVING AND INSTALLING .
- Garage Door Opener Control Module -J530-
- Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
