BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

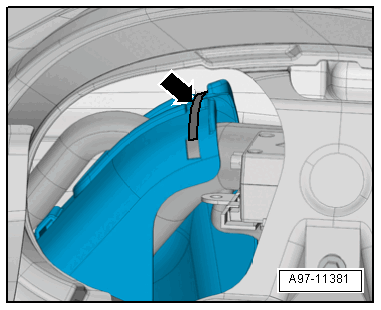

-- Cut the cable tie -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage fuse panel C and push it aside. Refer to RELAY AND FUSE PANEL BEHIND INSTRUMENT PANEL ON DRIVER SIDE, REMOVING AND INSTALLING .

-- Disconnect the connector from the Front Parking Aid Warning Buzzer -H22-.

-- Disconnect the Vehicle Electrical System Control Module -J519- connector. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .

-- Remove the bracket for the Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-. Refer to PARKING AID / PARALLEL PARKING ASSISTANCE CONTROL MODULE, REMOVING AND INSTALLING .

-- Remove the diagnostic connector by releasing the locking mechanism on the bracket and removing the bracket outward.

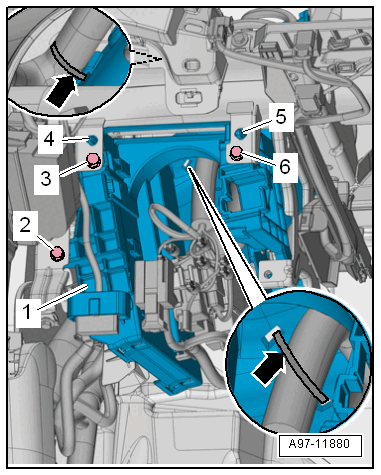

-- Remove the bolts -2, 3 and 6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the bracket -1- far enough forward from the instrument panel crossmember until the alignment pins -4 and 5- are disengaged.

-- Cut the cable ties -arrows-.

-- Free up the wiring harness on the mount.

-- Remove the bracket to the vehicle interior.
