Headrest Guide, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the backrest cover with the backrest cushion. Refer to BACKREST COVER AND CUSHION, SEPARATING .

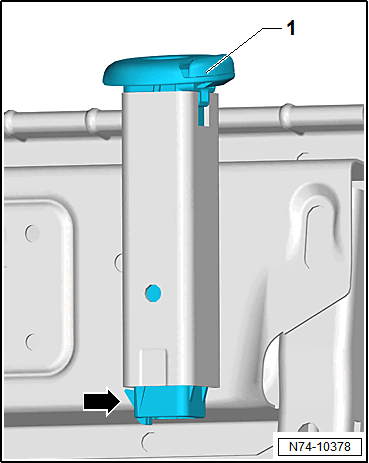

-- Push the tabs -arrow- and remove the headrest guide -1- upward at the same time.

GWWN74-10378Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
