Modular Wiring Routing, Disconnecting And Connecting

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Individual Wire, Removing

WARNING:

Risk of injury due to involuntary deployment.

Pay attention to the safety precautions when working with pyrotechnic components.
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the Engine/Transmission Holder - Seat Repair Fixture:VAS 6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

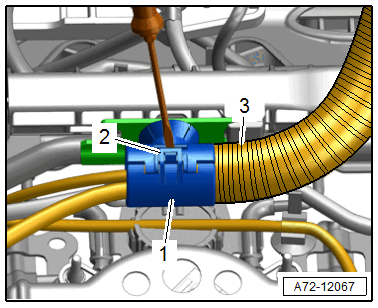

-- Open the cable holder -1- for the wire routing on the seat pan using a screwdriver; release the hook -2- to do this.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the corrugated tube -3- from the cable holder.

-- Open the front cable holder -1- using a screwdriver to release the hook -3-.

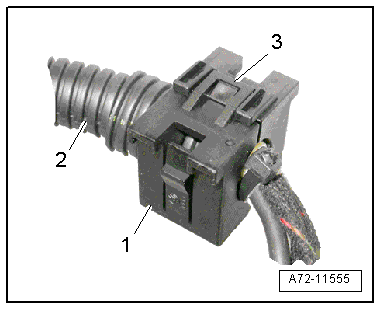

Fig 1: Identifying Retainer -3-, Front Cable Holder -1- & Corrugated Tube -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove wiring bracket from the corrugated tube -2-.

-- Disconnect the halves of the corrugated tube.

-- Cut the cable tie if necessary to remove a single wire.

NOTE:

Replacing a faulty wire or thorax airbag. Refer to WIRING HARNESSES AND CONNECTORS, REPAIRING .

-- Cut through the cable tie and remove the individual wire.

Individual Wire, Installing

WARNING:

Repairing pyrotechnic components (for example the airbag and seat belt tensioner) incorrectly increases the risk of unintentional deployments when the battery is connected.

Pay attention to the safety precautions when working with pyrotechnic components.
Before handling pyrotechnic components (for example, connecting a connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

Install in the reverse order of removal while noting the following:

-- When bundling and placing individual wires, make sure the wires are not twisted.

NOTE:

During installation, all cable ties, cable holders and clips must be installed at the same location.

Make sure the connectors are pushed in all the way and that they engage audibly.
