Power Lumbar Support Frame, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Drill:VAS 5072

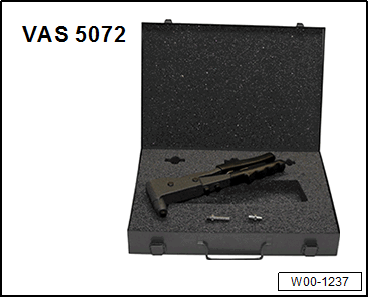

Fig 1: Identifying Pop Rivet Pliers VAS 5072
GWWW00-1237Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The following describes removing and installing the left seat. Removing and installing the right seat is similar.

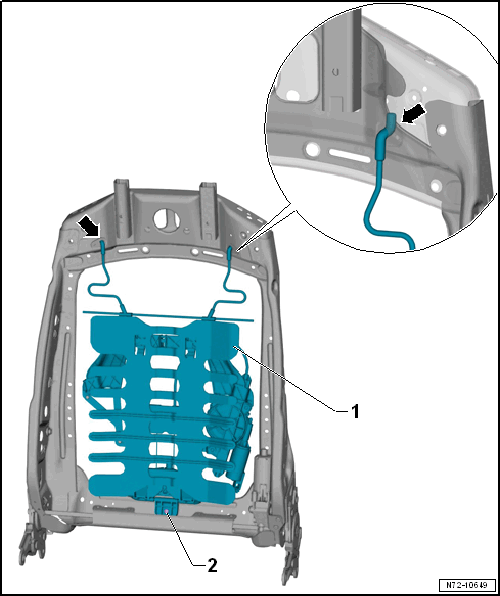

Fig 2: Identifying Lumbar Support Frame
GWWN72-10649Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
