Manual Lumbar Support, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1783 - 2-10Nm:V.A.G 1783

Fig 1: Identifying Torque Wrench
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The following describes removing and installing the left seat. Removing and installing the right seat is similar.

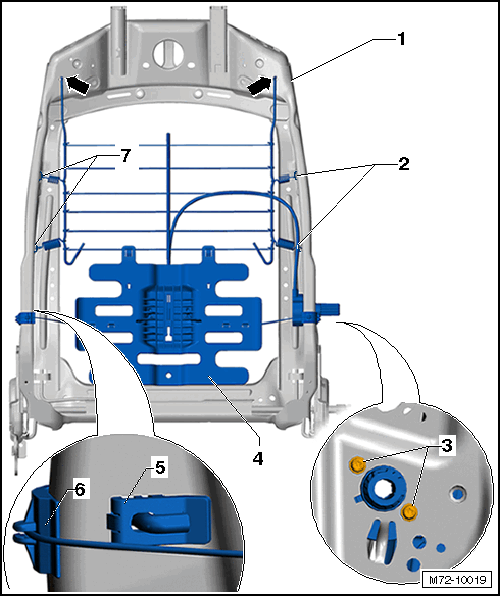

Fig 2: Identifying Seat Backrest Component Parts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
