Crash Bolster, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

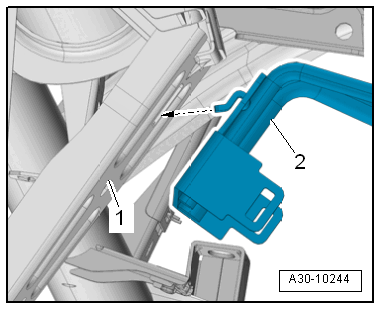

-- Engage the crash bolster -2- on the central tube -1- -arrow- and fasten.

GWWA30-10244Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal.
