Front Center Armrest, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

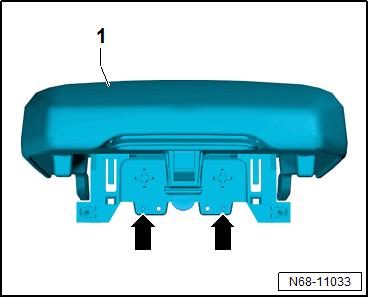

-- Cut free the outer holes -arrows- on the center armrest -1-.
NOTE:
Cutting free the holes is absolutely necessary because a new threaded connection in the old screw slot is not permitted when reinstalling.
-- Insert the center armrest from behind in the direction of travel in the center console.
-- Pull the center armrest toward the rear so that it engages in the center console.
Further installation is performed in reverse order of the removal.
