Overview - Center Console

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

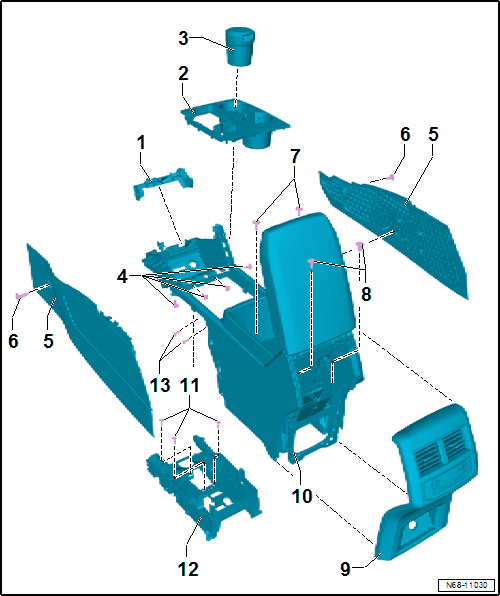

Fig 1: Exploded View Of Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Securing Bracket
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
Front Ashtray
- Equipped on some models
- Removing and Installing. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .
Bolts
- Quantity: 4
- 1.5 Nm
Footwell Center Console Trim Panel
- Left and right
- Removing and Installing. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
Bolts
- Quantity: 2
- 1.5 Nm
Bolts
- Quantity: 2
- 8 Nm
Bolts
- Quantity: 2
- 8 Nm
Center Console Rear Trim
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Bolts
- Quantity: 3
- 8 Nm
Bracket on Gear Shift Mechanism
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Bolts
- Quantity: 2
- 1.5 Nm
