Center Console, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Check all the fasteners for damage and replace if necessary.

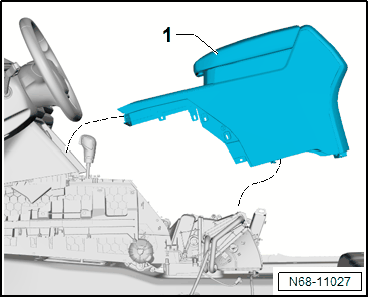

-- Carefully insert the center console -1- and engage in the instrument panel.

GWWN68-11027

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

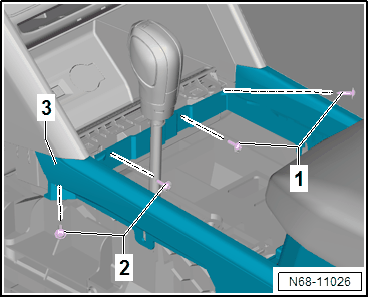

-- Tighten the center console -3- with the two bolts -1- and -2- respectively in the instrument panel.

GWWN68-11026

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

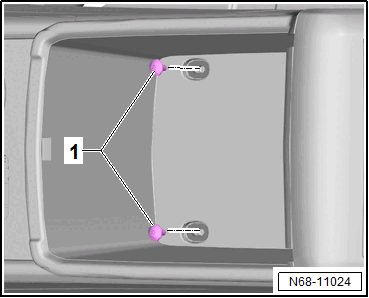

-- Fold up the center armrest and tighten the center console with the two bolts -1-.

GWWN68-11024

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

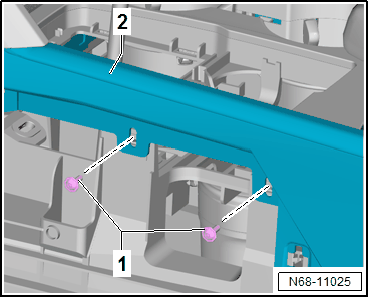

-- Tighten the center console on both sides with the two bolts -1-.

GWWN68-11025

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

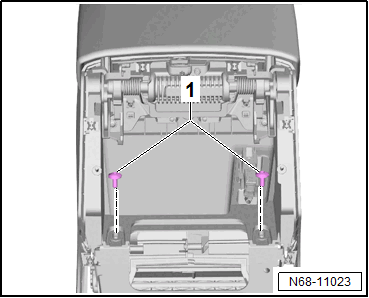

-- Install in the rear area of the center console with the two bolts -1-.

GWWN68-11023

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Further installation is performed in reverse order of the removal.
