Center Console Insert, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the switch in the center console insert. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .

-- Removing and installing the selector lever handle. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

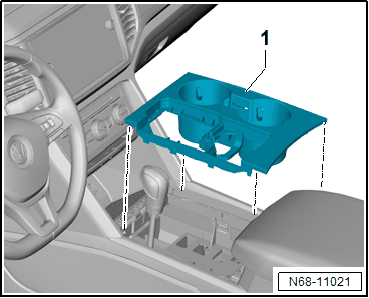

-- Carefully pull the center console insert -1- in the rear area upward and loosen from the center console catches.

GWWN68-11021Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connections, if equipped.

-- Pull the center console insert -1- slightly rearward and remove the center console.
