Left Front Parallel Parking Assistance Sensor -G568- /Right Front Parallel Parking Assistance Sensor -G569-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

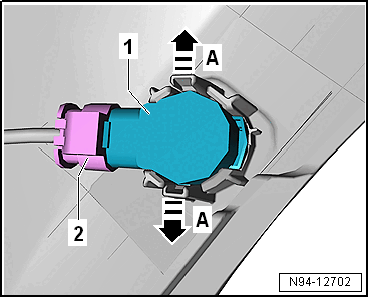

-- Push both tabs in the direction of the -arrow A-. At the same time push through the sensor -1- from the outside to the inside.
-- Disconnect the connector -2-.
