Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

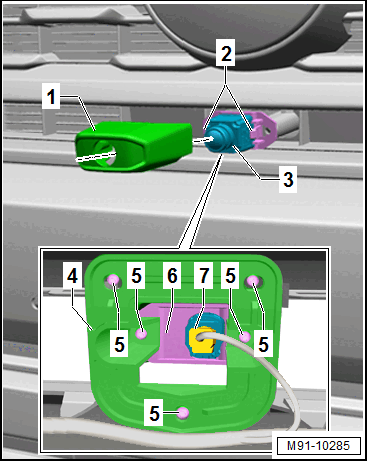

-- Release and disconnect the connector -7-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -5-.

-- Release the retaining tab -6- from the cover -1-.

-- Remove the cover -1- toward the front.

-- Release the retaining tabs -2- on the bracket -4-.

-- Remove the Front Peripheral Camera -R243- -3- forward out of the bracket -4-.

-- Remove the bolts -8-.

-- Unclip the bracket -4- from the front bumper cover.
