Calibration Board

• The camera lens must be clean.
• The vehicle must be standing on a firm and level surface.
• There must be sufficient open space around the vehicle.
• The parking brake must be set.
• The steering wheel must be in the 0 position and the wheels must be straight.
• All doors and the rear lid must be closed.
• No one should be in the vehicle.
• The vehicle must not be loaded (curb weight).
• Before each calibration: turn on the ignition.

Special tools and workshop equipment required

• Calibration Unit:VAS 6350A
• Vehicle Diagnostic Tester

The Calibration Unit:VAS 6350A  consists of the following parts:

• Calibration Tool - Wheel Center Mountings:VAS 6350/1
• Calibration Tool - Spacing Laser:VAS 6350/2
• Calibration Tool - Linear Laser:VAS 6350/3A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

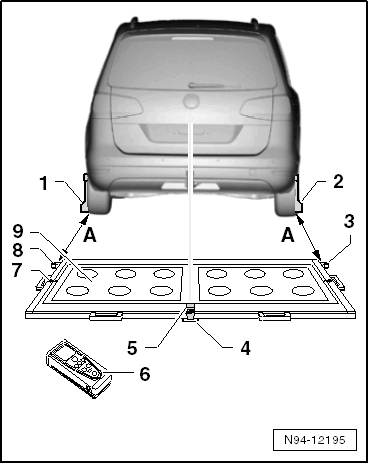

1. Calibration Tool - Wheel Center Mountings:VAS 6350/1
2. Calibration Tool - Wheel Center Mountings:VAS 6350/1
3. Right Angle Bracket
   • Calibration Tool - Spacing Laser:VAS 6350/2  mount
4. Plastic Foot
   • Three on underside of the calibration board
   • Adjustable for aligning horizontal position of the calibration board
5. Calibration Tool - Linear Laser:VAS 6350/3A
   • On the calibration board
   • Switching on and off. Refer to the appropriate Service Information.
6. Calibration Tool - Spacing Laser:VAS 6350/2
   • Refer to the appropriate Service Information for notes on the operation.
7. Level
   • On the calibration board
   • For checking the horizontal position
8. Left Angle Bracket
   • Calibration Tool - Spacing Laser:VAS 6350/2  mount
9. Calibration Board
   • Between the mounts on the calibration board and the Calibration Tool - Wheel Center Mountings:VAS 6350/1  dimension -A- 1.40 m (4.6 feet) through 2.00 m (6.6 feet).

Calibration board orientation

-- Position the Calibration Tool - Lane Change Calibration Tool:VAS 6350/4  behind the vehicle with a distance of 1.40 m to 2.00 m (4.6 feet to 6.6 feet) between the angled brackets on the calibration device and the paddles at the rear wheel center wheel mountings as shown in the overview illustration -dimension A- -Item 9-  Calibration Board.

-- Bring the Calibration Tool:VAS 6350A  into a horizontal position.

-- Twist the plastic feet under the calibration board so that the air bubble in the level is located exactly in the center of the indicator -arrow-.

Fig 1: Identifying Bubble Level (Sight Glass) On Calibration Tool VAS 6350

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

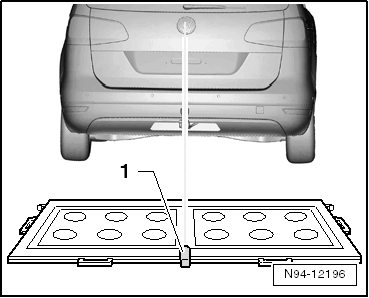

-- Switch on the Calibration Tool - Linear Laser:VAS 6350/3  -1- on the calibration board and adjust the entire Calibration Unit:VAS 6350A  so that the laser beam hits the center of vehicle rear above the VW emblem.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Continue calibrating the Rearview Camera -R189-. Refer to Rearview Camera -R189-, CALIBRATING .
