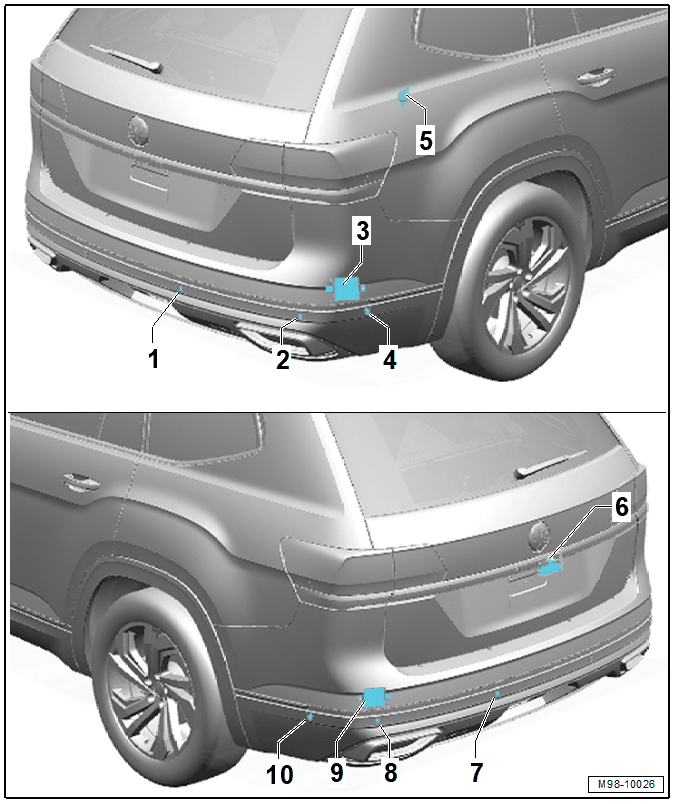

Component Location Overview - Sensors And Control Modules In Rear Section Of Vehicle
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Right Rear Center Parking Aid Sensor -G205-
- Right Rear Parking Aid Sensor -G206-
- Blind Spot Detection Control Module 2 -J1087- /Lane Change Assistance Control Module 2 -J770-
- Refer to BLIND SPOT DETECTION
- Refer to Blind Spot Detection Control Module -J1086- / Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING
- Refer to LANE CHANGE ASSISTANCE
- Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING
- Right Rear Parallel Parking Assistance Sensor -G717-
- Rear Parking Aid Warning Buzzer -H15-
- Rear Lid Handle -EX37-
- With Rearview Camera -R189-
- Refer to REARVIEW CAMERA SYSTEM
- Removing and Installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Refer to REARVIEW CAMERA SYSTEM, CALIBRATING
- With Rear Peripheral Camera -R246-
- Removing and Installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Refer to PERIPHERAL CAMERA, CALIBRATING
- Left Rear Center Parking Aid Sensor -G204-
- Left Rear Parking Aid Sensor -G203-
- Blind Spot Detection Control Module -J1086- /Lane Change Assistance Control Module -J769-
- Refer to BLIND SPOT DETECTION
- Refer to Blind Spot Detection Control Module -J1086- / Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING
- Refer to LANE CHANGE ASSISTANCE
- Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING
- Left Rear Parallel Parking Assistance Sensor -G716-
