Overview - Torque Converter

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The torque converter and transmission in the illustration may differ from the original part.

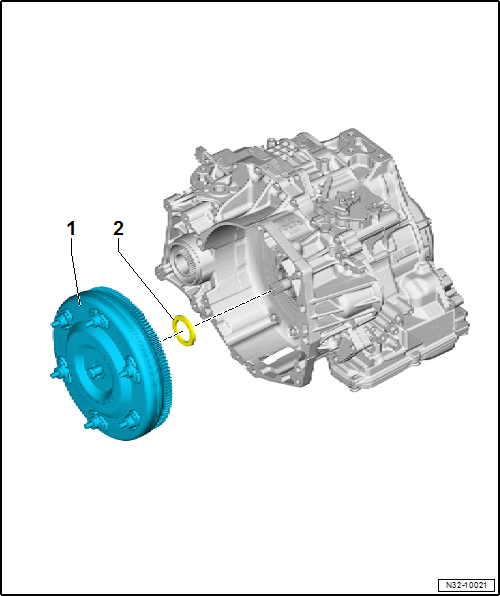

Fig 1: Exploded View Of Torque Converter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Torque Converter
- Secure the torque converter from falling when the transmission is removed or during transport. Refer to Fig 3.
- Refer to the appropriate Electronic Parts Information for the codes.
- Identification. Refer to TORQUE CONVERTER IDENTIFICATION .
- Installing. Refer to TORQUE CONVERTER, REMOVING AND INSTALLING .
Seal
- For the torque converter
- Replacing. Refer to TORQUE CONVERTER SEAL, REMOVING AND INSTALLING .

Torque Converter - Tightening Specification

Fig 2: Torque Converter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the nuts -arrow- for the torque converter -1- to 57 Nm.

Torque Converter, Securing from Falling Out

Fig 3: Securing Torque Converter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the torque converter from falling, using the Bracket - Multiple Use:30-211A as shown (example).
