Transmission Identification

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

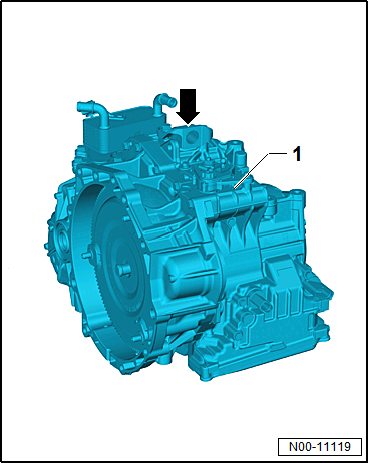

Code and Production Date -arrow- of the Transmission -1-

GWWN00-11119Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Code letter -arrow 1-

Fig 1: Code Letters, 6-Speed Automatic Transmission 09G
GWWN00-10081Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Example:

"Automatic Transmission 09G" -arrow 2-

GGZ 08 05 02
I I I I
Codes Day Month Production year -2002-

The transmission code is also listed on the vehicle data label.
