Transmission, Transporting

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine/Gearbox Support Shackle:10-222A/12

Fig 1: Engine/Gearbox Support Shackle (10-222A/12)
Courtesy of AUDI OF AMERICA, LLC
Shop Crane :VAS6100

Fig 2: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC

The Engine/Gearbox Support Shackle:10-222A/12 can be used to transport the automatic transmission and for setting up the Transmission Support:3282 .

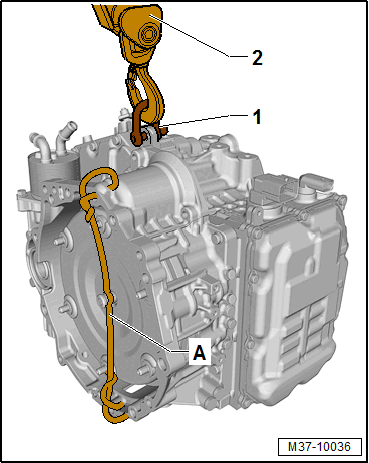

-- To prevent the torque converter from falling out during transport, secure it a wire -A-, for example.

Fig 3: Torque Converter, Securing from Falling Out

Courtesy of AUDI OF AMERICA, LLC

-- Mount the Engine/Gearbox Support Shackle:10-222A/12 -1- at the top of the transmission housing.

-- Engage the hook of the shop crane :VAS6100 -2- into the shackles a shown.

-- Lift the transmission using the Shop Crane:VAS6100 and Engine/Gearbox Support Shackle:10-222A/12 .
