Transmission, Removing, Vehicles With 3.6L Engine
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
- Adapter:10-222A/35
- Engine Support Bridge - Engine Support 18:10-222A/18
- Engine/Gearbox Support Shackle:10-222A/12
- Transmission Support - Pins 29:3282/29
- Transmission Support:3282
- Engine and Gearbox Jack:VAS6931
- Engine Bung Set:VAS6122
- Insert Tool - 18mm:T10509
or Insert Tool - 18mm:T10179
- Socket - Xzn 14:T10061
- Engine Support Bridge - Engine Support 3:10-222A/3
- Counterhold - Multiple Use:T10172A
- Engine Crane Adapter - Bracket:T10013
- Engine Support Bridge - Engine Support 19:10-222A/19
- Engine Support - Basic Set - Square Pipe:T40091/1
- Engine Support - Joint Fixture:T40091/3
- Engine Support Device - Gearbox Bracket:T10346/1
- Engine Support - Automatic Transmission Adapter:10-222A/16
- Engine Sling - Engine Bracket:2024A/1
- Tensioning Strap:T10038 (quantity: 2)
- Not illustrated: Socket - Sw15:V/175
Removing
-- Move the selector lever to >>P<<.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING - 4 CYL or AIR FILTER HOUSING, REMOVING AND INSTALLING - 6 CYL .
-- Remove the battery and battery tray. Refer to Battery .
-- Pry the selector lever cable -1- off the selector lever -2-, for example, using a wrench.
-- Disconnect the connector -6- from the Multifunction Transmission Range Switch -F125- and free up the wire at the bracket.
-- Remove the bolts -5- from the cable bracket -4-. Do not remove the lock washer -3-.
-- Disengage the gearshift lever cable -1- from the clip -2-.
Do not bend or kink the selector lever cable.
So that the cable is not damaged when removing and installing the transmission, use, for example, a cable tie to secure the cable on the body in a suitable position.
-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .
-- Remove the upper bolts -arrows- connecting the transmission to the engine, for example, with a 12-point flex head socket wrench.
-- Remove the bracket for coolant hoses, so that the >>rear<< spindle from the engine support bridge has enough >>clearance<<.
-- Disconnect any hoses and cables located near the engine lifting eyes for the Engine Support Bridge:10-222A .

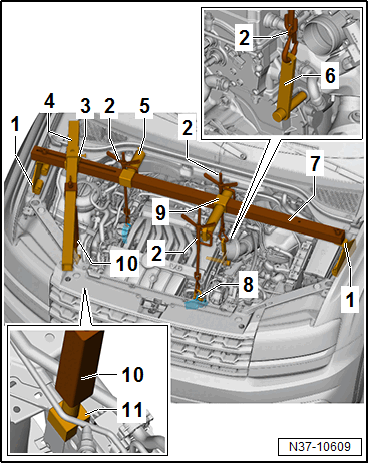

-- Attach the Engine Support Bridge:10-222A as shown. The base -11- from the Engine Support Bridge - Engine Support 19:10-222A/19 -10- is supported by the longitudinal member seam.
The following are needed:
- Adapter:10-222A/35 -1- (quantity: 2)
- Spindle from the Engine Support Bridge:10-222A -2- (quantity: 3)
- Engine Support - Joint Fixture:T40091/3 -3-
- Square Pipe:T40091/1 -4-
- Engine Support Bridge - Engine Support 3:10-222A/3 -5-
- Engine Crane Adapter - Bracket:T10013 -6-
- Square pipe from Engine Support Bridge:10-222A -7-
- Engine/Gearbox Support Shackle:10-222A/12 -8-
- Engine Support Bridge - Engine Support 18:10-222A/18 -9-
- Engine Support Bridge - Engine Support 19:10-222A/19 -10- with base -11-
- Engine Sling - Engine Bracket:2024A/1
- Engine Support Bridge - Gearbox Bracket:T10346
- Engine Support Device - Gearbox Bracket:T10346/1
- M6 x 40 collar bolt
- Also slide the Engine Support - Automatic Transmission Adapter:10-222A/16 onto the left side of the Engine Support Bridge. Refer to Fig 14.
- When the Engine Support Bridge is complete, the Engine Support - Automatic Transmission Adapter:10-222A/16 is located between the Engine Support Bridge - Engine Support 18:10-222A/18 and the left Adapter:10-222A/35 .
- The Engine Support - Automatic Transmission Adapter: 10-222A/16 secures the Engine Support Bridge later in the procedure.
-- Push the Engine Support Bridge - Engine Support 18:10-222A/18 and Engine Support Bridge - Engine Support 3:10-222A/3 onto the Engine Support Bridge:10-222A .
Secure the Engine Support Bridge10-222A as Shown

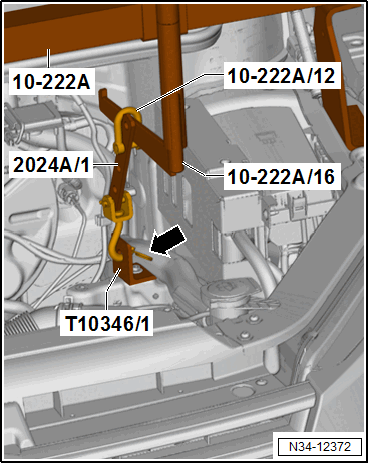

-- Fasten the Engine Support Bridge - Gearbox Bracket:T10346 or Engine Support Device - Gearbox Bracket:T10346/1 to the left rear locating hole for the battery tray.
-- Use a M6 x 40 collar bolt or one of the bolts for the battery tray.
Attach the Engine/Gearbox Support Shackle:10-222A/12 to the topmost hole on the Engine Sling - Engine Bracket:2024A/1 .
-- Secure the Engine Sling - Engine Bracket:2024A/1 with the securing pin -arrow-.
-- Then engage the Spindles in the engine lifting eyes.
-- Lightly pretension the engine/transmission assembly and Engine Support Bridge using the Spindles.
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Remove the connector from the transmission as follows Push the retainer -1- in the direction of the -arrow-, open the hook -2- and then remove the connector -3- from the transmission.
-- Remove the bolt -arrow A- and the ATF lines -2- from the thermostat -1-. The bolts - B arrows - are not removed.
-- Seal the ATF lines and connections on the thermostat with suitable plugs taken from the Engine Bung Set:VAS6122 .
Remove the subframe. Refer to OVERVIEW - SUBFRAME .
-- Remove the right and left drive axle from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
-- Secure both drive axles to the suspension strut using the Tensioning Strap:T10038 .
Do not damage the surface protection of the shafts.
AWD Vehicles
-- Remove the bevel box. Refer to BEVEL BOX, REMOVING, VEHICLES WITH 3.6L, 206 KW ENGINE .
Continuation for All Vehicles
-- Remove the six converter nuts -arrow- with the Socket - Sw15:V/175 .
-- To do so, turn the engine an additional 60° in the direction of engine rotation -arrow- using the Counterhold - Multiple Use:T10172A .
If all six torque converter nuts are not removed, the torque converter will be pulled out when removing the transmission from the engine!
Use the Crankshaft Adapter:T03003 to counterhold at the belt pulley/vibration damper when loosening the torque converter nuts.
-- Remove the transmission/fluid pan bolts -arrows-.
-- Remove the front bolts for attaching the engine to the transmission -1-. The upper bolt is secured with a nut -arrow-.
-- Remove the bolts -arrows- from the left subframe mount for the transmission.
-- Lower the engine/transmission as far as dimension -a- using the spindles on the Engine Support Bridge:10-222A .
-a- = Approximately 70 mm
The transmission is disconnected from the engine in this position.
-- Place the Transmission Support:3282 -A- on the Engine and Gearbox Jack:VAS6931 -B-.
Install the Transmission Support:3282 on the transmission as follows with the Mounting Elements:
- The Engine and Gearbox Jack with Transmission Support is positioned under the transmission -1- so that the spindle -left arrow- points forward in the direction of travel.
- The spindle -right arrow- points in the direction of travel to the left.
- The Mounts -C- are positioned in the groove surrounding the transmission fluid pan as shown.
- The Pin -D- locks in the recess on the front right side of the transmission.

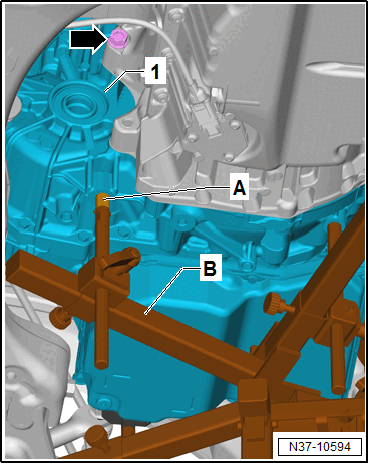

-- Install the Transmission Support - Pins 29:3282/29 -A- into the rear hole for the pendulum support bolt on the transmission -1-.
-- Support the transmission by carefully lifting it using the Engine and Gearbox Jack.
-- Remove the last engine/transmission connecting bolt -arrow-.
-- Pry up the transmission -3- from the engine at the same time push the torque converter -1- against the transmission in the direction of -arrow- using for example a screwdriver -2-.
-- Carefully drain the transmission, ensure >>clearance<< to other components.
-- After the removing the transmission, secure the torque converter from falling. Refer to Fig 18.
-- Install the transmission. Refer to TRANSMISSION, INSTALLING .
