Transmission Tightening Specifications
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

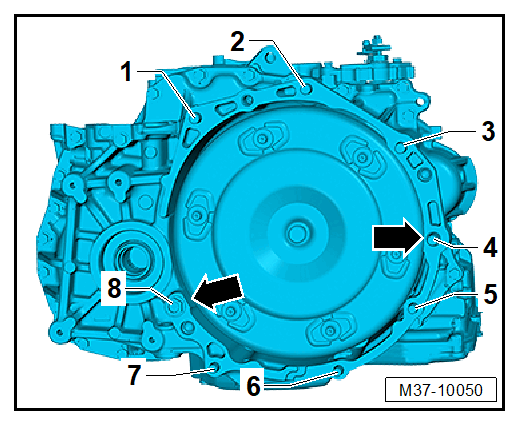

Transmission Tightening Specifications, Vehicles with 2.0L Engine
Courtesy of AUDI OF AMERICA, LLC
| Item |
Bolt |
Nm |
| -1-, -2- |
M12 x 50 |
80
- Using the Insert Tool - 18mm T10179 or T10509: >>65 Nm<<
|
| -3-, -4- (starter bolt) |
M12 x 205 with nut |
80 |
| -5-, -6-, -7- |
M10 x 45 |
40 |
| -8- |
M12 x 60 |
80 |
| -arrows- |
Alignment sleeves for centering |

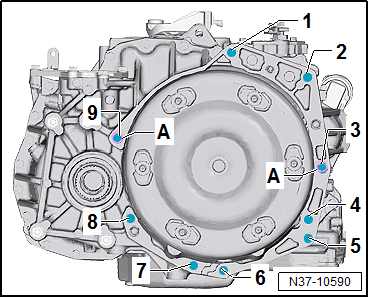

Transmission Tightening Specifications, Vehicles with 3.6L Engine
Courtesy of AUDI OF AMERICA, LLC
| Item |
Bolt |
Nm |
| -1-, -2- |
M 12x45 |
80
- Using the Insert Tool - 18mm T10179 or T10509: >>65 Nm<<
|
| -3- |
M12x65 with nut |
80 |
| -4- |
M 12x45 |
80 |
| -5-, -6-, -7-, -8- |
M10 x 45 |
40 |
| -9- |
M12 x 70 |
80 |
| A |
Alignment sleeves for centering |
| |
| Component |
Tightening Specification |
| Subframe mount to transmission (replace the bolts after removal) |
60 Nm +90° |
| Ground cable to subframe mount |
25 Nm |
| Drive plate to torque converter |
57 Nm |
| Right drive axle heat shield to bevel box |
20 Nm |
| Driveshaft to bevel box |
Refer to OVERVIEW - DRIVESHAFT
. |
Bevel Box to Transmission
Courtesy of AUDI OF AMERICA, LLC
- Replace the bolts -arrows- after removing them.
| Bolts |
Tightening Specification |
| -arrows- |
40 Nm +90° |

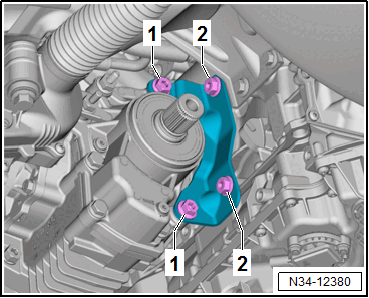

Vehicles with 3.6L - 206 kW Engine
Courtesy of AUDI OF AMERICA, LLC
| Item |
Bolt |
| 1 |
M10 x 45 |
| 2 |
M10 x 21 |
| Sequence |
Bolts |
Tightening Specification |
| 1 |
-1 and 2- |
Counter turn by hand |
| 2 |
-2- |
40 Nm |
| 3 |
-1- |
40 Nm |

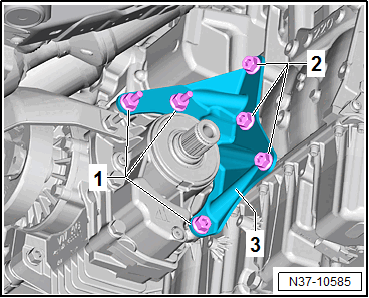

Vehicles with 2.0L - 162-175 kW Engine
Courtesy of AUDI OF AMERICA, LLC
| Item |
Bolt |
| 1 |
M10 x 21 |
| 2 |
M10 x 45 |
| Sequence |
Bolts |
Tightening Specification |
| 1 |
-1 and 2- |
Counter turn by hand |
| 2 |
-2- |
40 Nm |
| 3 |
-1- |
40 Nm |
Driveshaft Heat Shield
Courtesy of AUDI OF AMERICA, LLC
- Bolt -A- : 20 Nm
- Bolt -B- : 40 Nm
