Selector Shaft Seal, Replacing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Seal Installer - Selector Shaft Oil Seal:T10174

Courtesy of AUDI OF AMERICA, LLC
Puller - Crankshaft/Power Steering Seal:T20143/1

Fig 1: Crankshaft / Power Steering Seal Puller
Courtesy of AUDI OF AMERICA, LLC

-- Remove the Multifunction Transmission Range Switch -F125-. Refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, REMOVING AND INSTALLING .

-- Carefully remove the selector shaft seal with the Puller - Crankshaft/Power Steering Seal:T20143/1 . Do not to damage the selector shaft while doing so.

-- Coat the outer edge and sealing lips of the seal with ATF.

Installed position: open side of the seal faces the transmission housing.

-- Use the Seal Installer - Selector Shaft Oil Seal:T10174 to install the new seal until it stops. Do not tilt the seal while doing so.

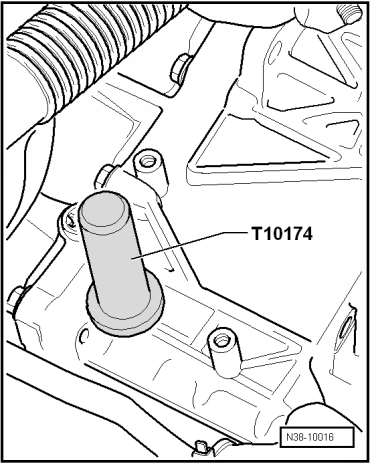

Fig 2: Identifying New Gasket Driven In Until Stop Using Thrust Piece T10174

Courtesy of AUDI OF AMERICA, LLC

-- Multifunction Transmission Range Switch -F125-, Installing. Refer to , Installing .
