Selector Lever Cable, Checking And Adjusting: Adjusting:
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the selector lever into "P" position.

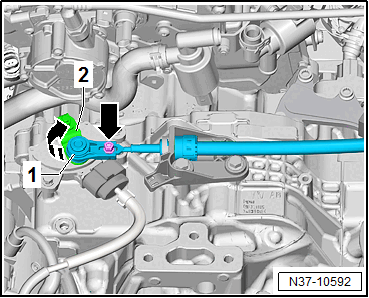

The adjusting screw -arrow- must be >>loosened<<.
-- Move the selector lever -2- on the transmission into "P" (push the gearshift lever toward the rear).
WARNING:
The parking lock must be engaged.
-- From >>underneath the vehicle<<, rotate both front wheels in the same direction and at the same time until the parking lock engages audibly.
- The parking lock is engaged when it is not possible to rotate both front wheels in the same direction at the same time.
-- Lightly tap the handle on the selector lever back and forth but do not move it out of "P" under any circumstances.
This places the selector lever cable core in its optimal position.
-- Tighten the bolt -arrow-.
This ends the adjustment.
Tightening Specification
- Refer to OVERVIEW - SHIFT MECHANISM
