Emergency Release From P

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Do Not Remove the Handle.

-- Press the brake pedal or set the parking brake.

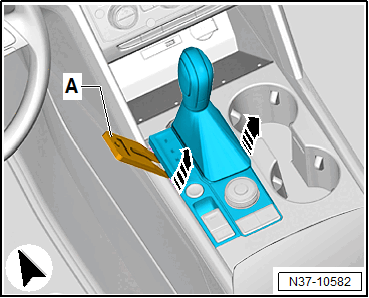

-- Insert the Wedge Set:T10383/2  -A- at the front on the left and right sides between the center console and shift cover as shown and carefully pry out the shift cover in direction of -arrows-.

GWWN37-10582Courtesy of AUDI OF AMERICA, LLC

-- Hold the shift cover to the side.

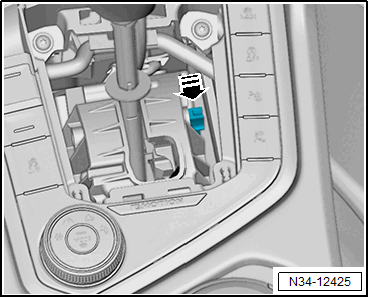

-- Push the yellow plastic sleeve rearward and hold it in this position.

GWWN34-12425Courtesy of AUDI OF AMERICA, LLC

The selector lever cannot be moved out of >>P<<.
