ATF, Draining And Filling

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit:SMN372500

Fig 1: Identifying Used Oil Collection and Extraction Unit
Courtesy of AUDI OF AMERICA, LLC
Oil Filler:VAS6262A

Fig 2: Identifying Oil Filler Adapter
Courtesy of AUDI OF AMERICA, LLC
Also Oil Filler - Adapter 6:VAS6262/6 for some fluid containers

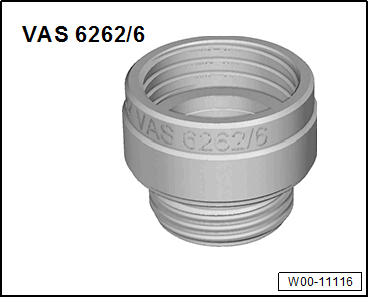

Fig 3: Adapter For Oil Filling 6 VAS 6262/6
Courtesy of AUDI OF AMERICA, LLC
Oil Filler - Adapter 2:VAS6262/2

Fig 4: Oil Filler - Adapter 2 VAS6262/2
Courtesy of AUDI OF AMERICA, LLC

Requirements

The engine is off.
The vehicle is level and all hoist mounts are the same height.
Noise insulation is removed if necessary
Selector lever is in "P"
The Vehicle Diagnostic Tester is connected.
To begin working, the oil temperature must not be higher than 45 °C (113 °F).

-- If ATF is filled, only use ATF that is available as a replacement part. Refer to the Parts Information.

WARNING:

Risk of injury due to hot transmission fluid.

-- Connect the Vehicle Diagnostic Tester and identify the vehicle in Guided Functions .

-- Select check ATF level .

NOTE:

Let the transmission cool down if the fluid temperature is higher than 45 °C (113 °F).

WARNING:

Do not start the engine if there is no transmission fluid in the transmission.

-- Engine off - do not start!

The Used Oil Collection and Extraction Unit:SMN372500 is positioned under the transmission.

-- Remove the ATF check plug -arrow-.

Fig 5: ATF Level Plug

Courtesy of AUDI OF AMERICA, LLC

-- Remove the overflow pipe -1- through the check hole.

Fig 6: Identifying ATF Overflow Pipe And Sealing Plug

Courtesy of AUDI OF AMERICA, LLC

-- Let the ATF drain.

-- Install the overflow pipe.

-- Attach the Oil Filler:VAS6262A to the fluid bottle. Pay attention to the instructions while doing so. Refer to Note the following information: .

-- Install the Oil Filler - Adapter 2:VAS6262/2 hand-tight in the ATF check hole.

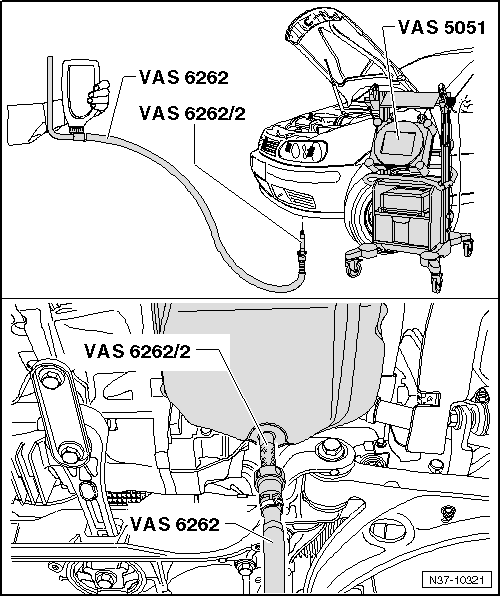

Fig 7: Identifying Oil Filling Adapter VAS 6262/2 Installed

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Shake bottles well before opening so that the settled components at the bottom of the bottle are mixed sufficiently with the oil.

-- Fill with three liters of ATF. Refer to the Parts Information.

-- To change containers, close the shut-off valve or hold the Oil Filler:VAS6262A higher than the transmission.

-- Remove the Oil Filler - Adapter 2:VAS6262/2 from the fluid pan and tighten the ATF check plug hand-tight.

-- Move the selector lever into "P" position.

-- Start the engine.

-- With the brake pedal pressed, move the selector lever through all the different positions "P, R, N, D and S" at idle speed, holding it at each position for approximately 10 seconds.

-- Move the selector lever into "P" position.

-- Check the ATF level. Refer to ATF LEVEL, CHECKING .

Tightening Specifications

Refer to OVERVIEW - VALVE BODY
