ATF Lines From Adapter To ATF Cooler, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal while noting the following:

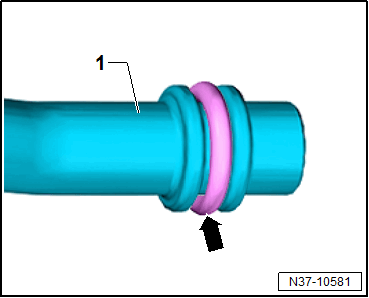

-- Always replace the O-rings -arrow-.

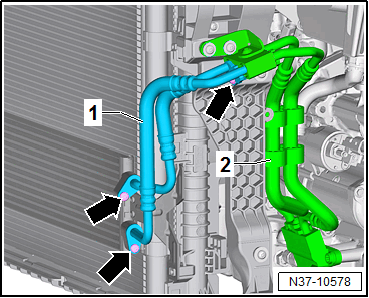

-- Remove the ATF lines -1- with new O-rings on the radiator and adapter -arrows-.
-- Bleed the ATF circuit. Refer to ATF CIRCUIT, BLEEDING .
