Brake Pads, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

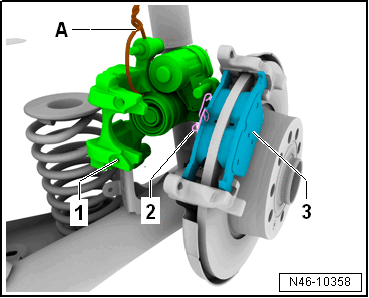

-- Install the inner brake pad -2- and outer -3- in the brake carrier.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the brake caliper.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

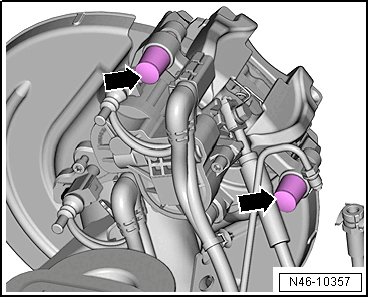

-- Install the caps -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

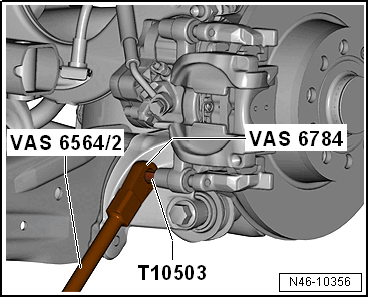

-- Install the brake pads spring in the brake caliper opening -arrow-.

Fig 1: Identifying Brake Pad Retaining Spring, Brake Caliper Housing And Screwdriver

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Make sure that the spring is seated correctly in the holes on the brake caliper.

After driving the pistons out using the Vehicle Diagnostic Tester, a basic setting of the brake system must be performed.

-- Perform the basic setting of the brake system using the Vehicle Diagnostic Tester.

-- Install the wheels.
