Dust Cap, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- The surface on the piston and the brake caliper must only be cleaned with mineral spirits and then dried.

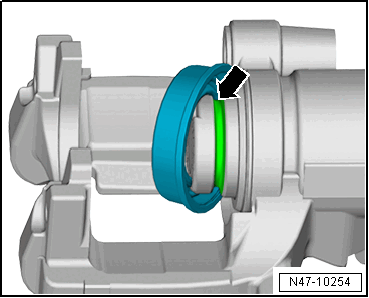

-- Place the protective cap in the groove -arrow- on the piston.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

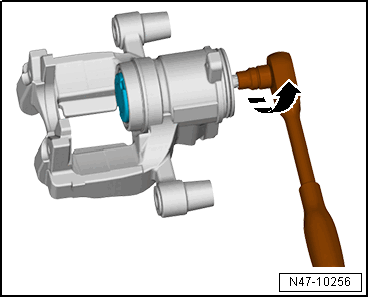

-- Re-install the piston in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

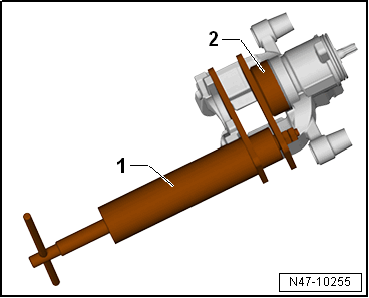

-- Push the protective cap on the brake caliper with the :T10502 -2- and the :T10145 -1- so that it rests all around the brake caliper.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
